A pre-painted steel product generally consists of three layers: a steel sublayer with a zinc-based coating, an undercoat called primer and a layer of surface paint called finishing coat.
The sublayer directly affects the installation of the product and its resistance to corrosion. If a high corrosion resistance is requested, a thick zinc coating is preferred. However thinner zinc based coatings are recommended, being more flexible and resistant to cracking when subjected to severe deformation.



Available colours (also with stucco surface)

Galvanised Prepainted Steel

Testa di Moro

Galvanised Prepainted Steel

Grey-White

Galvanised Prepainted Steel

Siena Red

Galvanised Prepainted Steel

White C21

Galvanised Prepainted Steel

Grey C30

Galvanised Prepainted Steel

Black E3

Galvanised Prepainted Steel

RAL 3000

Galvanised Prepainted Steel

RAL 3003

Galvanised Prepainted Steel

RAL 5010

Galvanised Prepainted Steel

RAL 6005

Galvanised Prepainted Steel

RAL 6021

Galvanised Prepainted Steel

RAL 6029

Galvanised Prepainted Steel

RAL 7016

Galvanised Prepainted Steel

RAL 9006

Galvanised Prepainted Steel

RAL 9010





ANTISLIP colours

Galvanised Prepainted Steel ANTISLIP

Testa di Moro

Galvanised Prepainted Steel ANTISLIP

RAL 7037



Galvanised Prepainted Steel Strip


Laminato per lattoneria in Galvanised Prepainted Steel   DX51 - Z100
20/17
DX51 - Z100
35/17
DX51 - Z275
25/25
Material DX51D DX51D DX51D
Zinc coating Z100 Z100 Z275
Coating 20/17 μm 35/17 μm 25/25 μm
Available Colours Testa di moro / Grey-White / Siena Red / C21 / C30 / RAL 3000 / RAL 5010 / RAL 6005 / RAL 6029 / RAL 7016 / RAL 9006 / RAL 9010 / Bianco pireneo / Nero E3 Testa di moro / Grey-White

High scratch resistant material
Testa di moro / RAL 7016 / RAL 9002

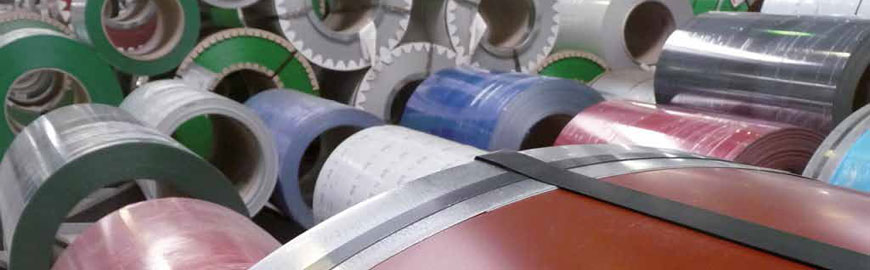

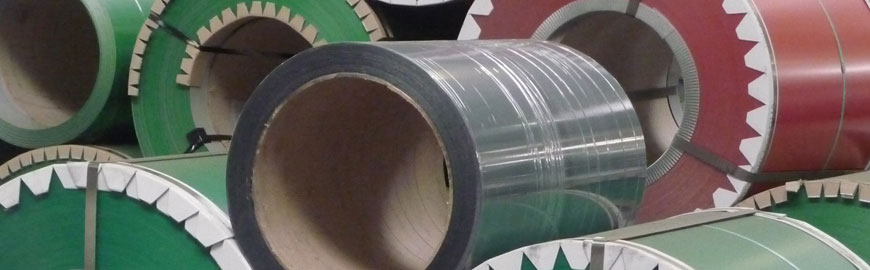

COILS (Available also in little coils, inner Ø 300 mm - Stucco surface available)
Width from 30 to 1250 mm from 30 to 1250 mm from 30 to 1250 mm
Thickness 0,50 / 0,55 / 0,60 / 0,70 / 0,80 / 1,00 / 1,20 / 1,50 mm 0,55 / 0,75 mm 0,55 mm
Coil weight from 250 to 3000 kg from 250 to 3000 kg from 250 to 3000 kg



Galvanised Prepainted Steel Gutters

Width mm DX51 - Z100 - 35/17 μm DX51 - Z275 - 25/25 μm
Galvanised Prepainted Steel Gutters Width 250 mm
Bead 18 mm
2-3-4
5-6 m
2-3-4
5-6 m
Width 280 mm
Bead 18 mm
2-3-4
5-6 m
2-3-4
5-6 m
Width 333 mm
Bead 20 mm
2-3-4
5-6 m
2-3-4
5-6 m
Available Colours Testa di Moro / Grey-White / Siena Red / RAL 7016 / RAL 7037 / RAL 9006 / RAL 9010 / Bianco pireneo / Nero E3 Testa di Moro / RAL 7016 / RAL 9002



Conid : Galvanised Prepainted Steel rainwaterpipes

Dim. mm DX51 - Z100 - 20/17 μm DX51 - Z275 - 25/25 μm
Conid : Galvanised Prepainted Steel rainwaterpipes Ø 60 2 m 2 m
Ø 80 2-3-4 m 2-3-4 m
Ø 100 2-3-4-6 m 2-3-4-6 m
Ø 120 3-4 m 3-4 m
80x80 2-3-4 m 2-3-4 m
100x100 3-4 m 3-4 m
Available Colours Testa di Moro / Grey-White / Siena Red / RAL 7016 / RAL 7037 / RAL 9006 / RAL 9010 / Bianco pireneo / Nero E3 Testa di Moro / RAL 7016 / RAL 9002

Euround : Galvanised Prepainted Steel welded elbows

Ø mm
Euround : Galvanised Prepainted Steel welded elbows Ø 60 72°-85°
Ø 80 72°-85°
Ø 100 40°-72°-85°
Ø 120 85°
Available Colours Testa di Moro / Grey-White / RAL 7016 / RAL 7037 / RAL 9002 / RAL 9006



Galvanised Prepainted Steel welded double elbows

Ø mm
Galvanised Prepainted Steel welded double elbows Ø 80
Ø 100
Available Colours Testa di Moro / Grey-White / RAL 7016 / RAL 7037 / RAL 9002 / RAL 9006



Galvanised Prepainted Steel roofing accessories


Galvanised Prepainted Steel roofing accessories Perforated strip Height 165 / 200 / 250 / 330 / 1000 mm
Galvanised Prepainted Steel roofing accessories Endcaps Width 280 / 333 mm
Galvanised Prepainted Steel roofing accessories Supports Width 280 / 333 mm
Galvanised Prepainted Steel roofing accessories Gutter outlets Width 280/80 mm - Width 280/100 mm
Width 333/80 mm - Width 333/100 mm
Galvanised Prepainted Steel roofing accessories Outlets for soldering, flat
Outlets for soldering, halfround

Ø 80 - Ø 100 mm

Ø 80 - Ø 100 mm
Galvanised Prepainted Steel roofing accessories Corners Width 280 mm - Bead 18 mm - inner/outer
Width 333 mm - Bead 20 mm - inner/outer
Galvanised Prepainted Steel roofing accessories Available Colours Testa di Moro / RAL 7016 / RAL 7037 / RAL 9002 / RAL 9006



# Further dimensions available on demand.
